DESCRIPTION

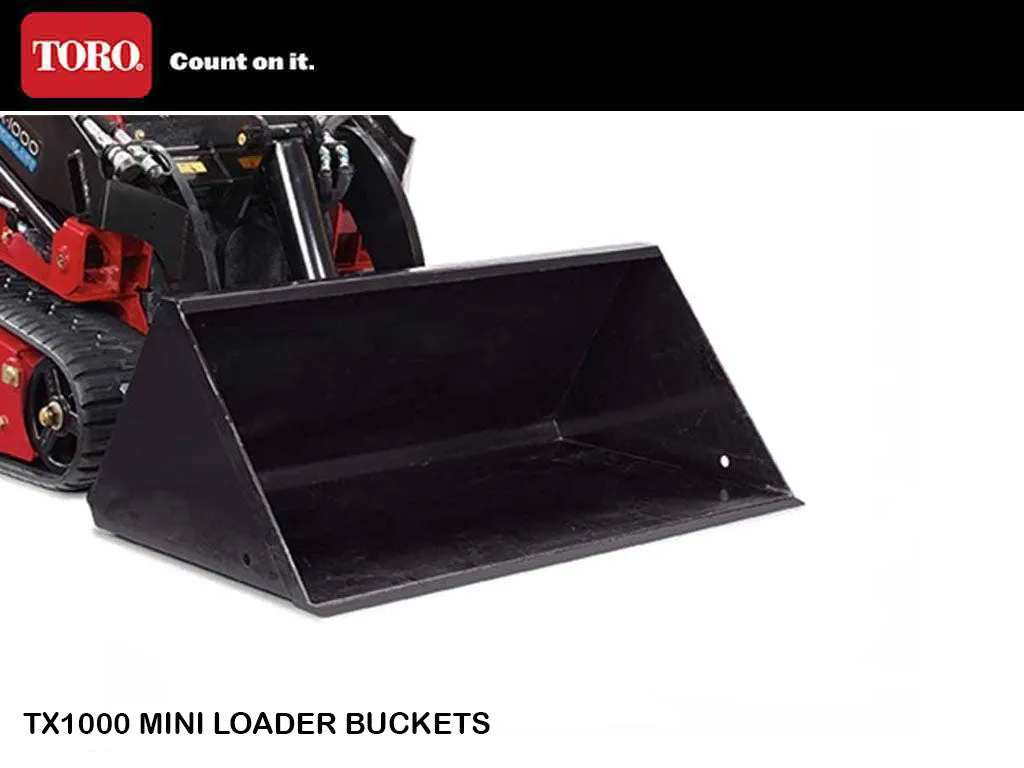

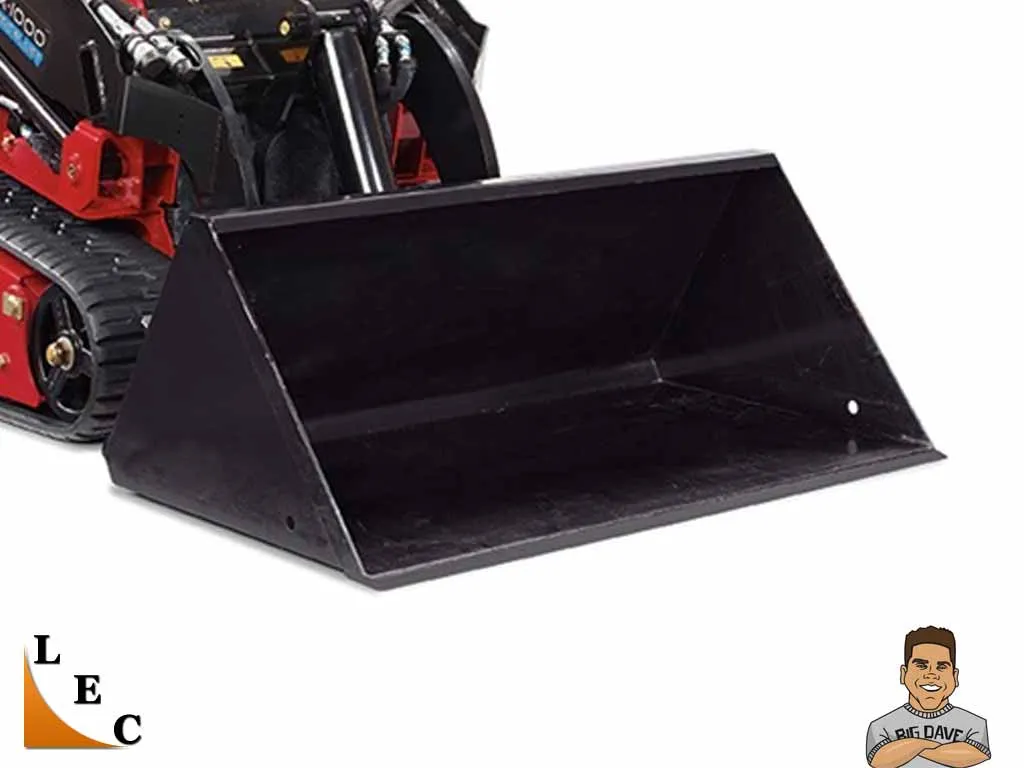

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Use the high volume bucket for carrying more material. Designed for TX 1000, volume = 9.0 cubic feet

SPECIFICATIONS

STANDARD BUCKET

• Capacity
  4.3 cu. ft (0.12m) (SAE struck)
• Height
  15 inches (38 cm)
• Length
  23 inches (58 cm)
• Weight
  172 lbs (78 Kg)
• Width
  41 inches (104 cm)

HIGH VOLUME BUCKET

• Capacity
  9 cu. ft (.25 m) (SAE struck)
• Height
  17 inches (43 cm)
• Length
  29 inches (74 cm)
• Weight
  253 lbs (115 kg)
• Width
  53 inches (132 cm)
